- Key Information
- 3 Speeds And A Booster Power Level
- Maximum Extraction Rate (Normal Use): 636 m³/h
- Maximum Extraction Rate (Using Booster): 782 m³/h
- Maximum Noise Level (Normal Use): 71 dB
- Maximum Noise Level (Using Booster): 72 dB
- Airflow Range: 277 / 782 m³/h
- Noise Level Range: 50 / 72 dB
- Energy Efficiency Rating: A+
- Suitable For Air Extraction Or Recirculation Mode: Yes
- Internet Connected Appliance: No
- Design
- Chimney Flue Included: n/a
- Controls: Touch Controls
- Finish: Neptune Grey
- Hood Type: Angled Hood
- Motor: Internal Motor
- Range: Smeg Linea Angled Hood
- Remote Control Available: No
- Width: 89.5 cm
- Lighting
- Lighting: LED Lighting
- Lighting Class: A
- Number Of Lamps: 2
- Features
- Auto/vent 2.0 (Hob / Hood Wireless Connectivity)
- Automatic Safety Switch/off
- Back Light Controls Panel
- Continuous Air Renewal Option
- Dimmer Function
- Filter Replacement Alarm
- Intensive Speed Function
- Perimeter Extraction
- Stainless Steel Grease Filters
- Timer (10 Minute)
- Washable Filters
- Technical Information
- Annual Efficiency Consumption: 41 KWh/a
- Cord Length: 1.50 m
- Duct Size: 150 mm
- Fluid Class: A
- Grease Filter Efficiency Class: E
- Minimum Distance From Electric Cooking Top: 45 cm
- Minimum Distance From Gas Cooking Top: 65 cm
- Product Code: KV194G
- Total Power Absorption: 279 W
Call us : 0115 946 2555

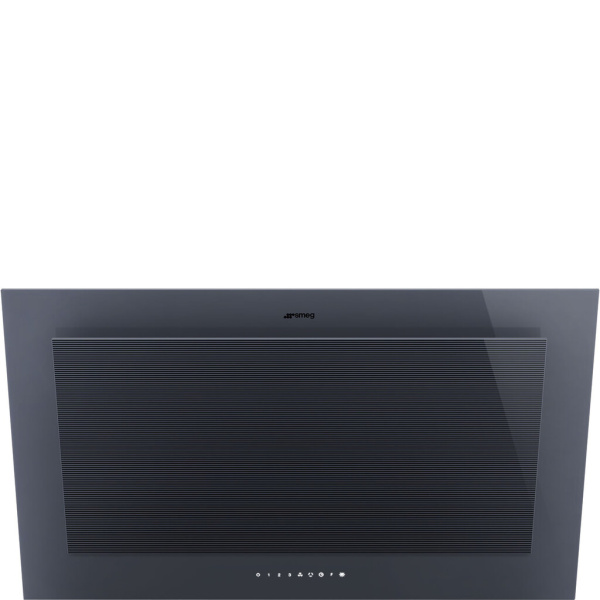

Smeg Linea Hood KV194G Neptune Grey
- Centralised and practical control via Bluetooth connection between hob and hood, letting you manage extraction automatically while you cook.
- Customized lighting with LED lights featuring adjustable color temperature, from warm to cool tones
- Intuitive and immediate usability thanks to the elegant white LED backlit touch display
- Enhanced extraction with a perimeter aspiration system ensures optimised performance, for a cleaner, fresher kitchen
- Customized lighting with LED lights featuring adjustable intensity
SKU : KV194G
Delivery times
If the item is in stock at our warehouse, we will contact you within 24 hours to arrange a delivery date.
If the item is not immediately available, we will contact you within 48 hours via email or phone with an estimated lead time.
Delivery costs
For most orders of £400 and over, delivery is free. For orders under £400, delivery is charged at £30. Please note, a surcharge will apply for some postcodes.
All of our deliveries are manually booked in by phone to ensure a trouble free service.
Full details of our delivery service can be found here.
We will deliver to the ground floor only of your delivery address provided there is unrestricted access to that address. We consider delivery access to be restricted if our delivery drivers are faced with the following:
- Double yellow lines;
- Red routes;
- Narrow lanes;
- Steep hills;
- Low bridges;
- Width restricted roads;
- Property on an upper floor with no lift;
- Basement property via steps; or
- Small lifts.
Specifications
| Overview | |
|---|---|
| Colour | Graphite Grey |
| Warranty | 5 Years Parts & Labour |
| Design | |
|---|---|
| Type | Wall-mounted |
| Product colour | Grey |
| Housing material | Glass |
| Control type | Touch |
| Built-in display | |
| Colour name | Neptune Grey |
| Mounting kit | |
| Performance | |
|---|---|
| Noise level | 71 dB |
| Breeze function | |
| Automatic opening | |
| Hob | |
|---|---|
| Minimum distance from electric hob | 45 cm |
| Minimum distance from gas hob | 65 cm |
| Extraction | |
|---|---|
| Maximum extraction power | 636 m³/h |
| Type of extraction | Ducted/Recirculating |
| Number of speeds | 3 |
| Maximum recirculating power | 636 m³/h |
| Boost position air extraction power | 782 m³/h |
| Noise level (medium speed) | 63 dB |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
| Motor included | |
| Grease filter type | Stainless steel/Charcoal |
| Dishwasher proof filter | |
| Removable filter | |
| Washable filter | |
| Motor power | 275 W |
| Height without chimney | 55 cm |
| Number of filters | 2 pc(s) |
| Noise level (low speed) | 50 dB |
| Noise level (high speed) | 71 dB |
| Exhaust location | Top |
| Anti-odor filter | |
| Intensive speed | |
| Noise level (intensive speed) | 72 dB |
| Filter cleaning indicator | |
| Airflow (low speed) | 277 m³/h |
| Ducting hose included | |
| Chimney height | 0 mm |
| Check valve | |
| Smeg technologies (air extraction) | Auto Vent 2.0 |
| Number of filter layers | 1 pc(s) |
| Lighting | |
|---|---|
| Bulb power | 2.1 W |
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Colour temperature | 4000 K |
| Illuminance | 139 lx |
| Lighting position | Front |
| Dimmable lighting | |
| Connectivity | |
|---|---|
| Wi-Fi | |
| Hob²Hood function | |
| Ergonomics | |
|---|---|
| Timer | |
| Self-cleaning | |
| Power | |
|---|---|
| Cord length | 1.5 m |
| Connected load | 279 W |
| AC input voltage | 220-240 V |
| AC input frequency | 50-60 Hz |
| Power consumption (standby) | 0.99 W |
| Power consumption (off) | 0.49 W |
| Energy management | |
|---|---|
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | E |
| Energy efficiency class | A |
| Annual energy consumption | 40.7 kWh |
| Energy efficiency scale | A to G |
| Energy efficiency index (EEI) | 41.2 |
| Energy efficiency class (old) | A+ |
| Grease filtering efficiency (GFE) | 64.3% |
| Fluid dynamic efficiency (FDE) | 36.2 |
| Lighting efficiency (LE) | 34.8 lux/W |
| Weight & dimensions | |
|---|---|
| Width | 895 mm |
| Depth | 439 mm |
| Height (min) | 55 cm |
| Weight | 20 kg |
| Installation compartment width | 89.5 cm |
| Installation compartment depth | 43.9 cm |
| Height | 459 mm |
| Installation compartment height | 55 cm |
| Packaging content | |
|---|---|
| Remote control included | |
| Quick installation guide | |
| Packaging data | |
|---|---|
| Package width | 1040 mm |
| Package depth | 560 mm |
| Package height | 550 mm |
| Package weight | 24.7 kg |
| Expanded Polystyrene (EPS) packaging weight | 1.53 kg |
| Paper packaging weight | 3.7 kg |
| Plastic packaging weight | 91 g |
| Logistics data | |
|---|---|
| Country of origin | Italy |
| Customs product code (TARIC) | 84146000 |
| Harmonized System (HS) code | 841460 |
| Intrastat code | 84146000 |
| Other features | |
|---|---|
| Number of vents | 1 |
