Design
- 52 cm wide
- Stainless steel
- White electronic display
- Electronic control via soft touch button control
- Light colour: warm white
- For installation in a kitchen cabinet
- Designed for suspended or flush ceiling installation
Key features
- Soft touch button control for extractor speeds and light
- 2 x 1W LED lights
- 1 x metal grease filter cassette
- Steel filter cover, steel filter cover
- Rim ventilation
Performance/technical information
- Suitable for ducted and re-circulating operation
- For recirculated extraction charcoal filter (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
- Max. normal use 560 m/h
- Intensive 610 m/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 67 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
- Intensive: 70 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
- 3 x power levels plus intensive setting
- Power rating: 252 W
- Automatic intensive revert
- Noise max. normal level: 67 dB
- Extractor hose 120 mm
- Dimensions (WxD): 520 x 300 mm

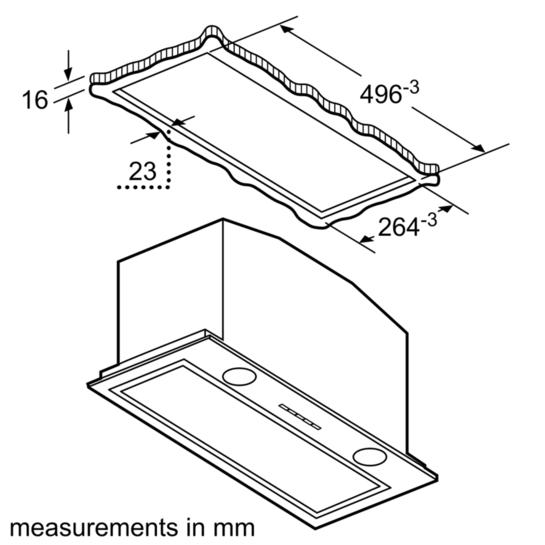

- Built-in dimensions (HxWxD): 418 x 496 x 264 mm
- Dimensions exhaust air (HxWxD): 418-418 x 520 x 300 mm
- Diameter pipe ø 150 mm (ø 120 mm enclosed)
- Light intensity: 244 lux
- Colour temperature: 4000 K
- Average energy consumption: 80.1 kWh/year
- Energy efficiency class: C
- Blower efficiency class: C
- Lighting efficiency class: A
- Grease filtering efficiency class: D
