SmartLine element as downdraft extractor for extraction or recirculation operation
SmartSelect. Easy to use thanks to SmartSelect. Quick and intuitive: power levels and times can be selected separately for each cooking zone.
Call us : 0115 946 2555
Miele CSDA 7001 FL
- Energy-efficient and quiet - powerful ECO motor
- Efficient filtration- 10-ply stainless-steel grease filter
- Elegant design – for flush or raised installation
- Seamlessly integrates with any SmartLine element
- Intuitive quick selection via number sequences – Smart Select
SKU : CSDA7001
Delivery times
If the item is in stock at our warehouse, we will contact you within 24 hours to arrange a delivery date.
If the item is not immediately available, we will contact you within 48 hours via email or phone with an estimated lead time.
Delivery costs
For most orders of £400 and over, delivery is free. For orders under £400, delivery is charged at £30. Please note, a surcharge will apply for some postcodes.
All of our deliveries are manually booked in by phone to ensure a trouble free service.
Full details of our delivery service can be found here.
We will deliver to the ground floor only of your delivery address provided there is unrestricted access to that address. We consider delivery access to be restricted if our delivery drivers are faced with the following:
- Double yellow lines;
- Red routes;
- Narrow lanes;
- Steep hills;
- Low bridges;
- Width restricted roads;
- Property on an upper floor with no lift;
- Basement property via steps; or
- Small lifts.
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Colour | Black |
| Control type | Touch |
| Built-in display | |
| Cord length | 2 m |
| Performance | |
|---|---|
| Noise level | 65 dB |
| Cooker hood | |
|---|---|
| Type of extraction | Ducted |
| Maximum extraction power | 560 m³/h |
| Noise level (intensive speed) | 69 dB |
| Fluid dynamic efficiency class | A |
| Grease filtering efficiency class | B |
| Power | |
|---|---|
| Energy efficiency scale | A+++ to D |
| Annual energy consumption | 25.3 kWh |
| Connected load | 170 W |
| AC input voltage | 230 V |
| Current | 10 A |

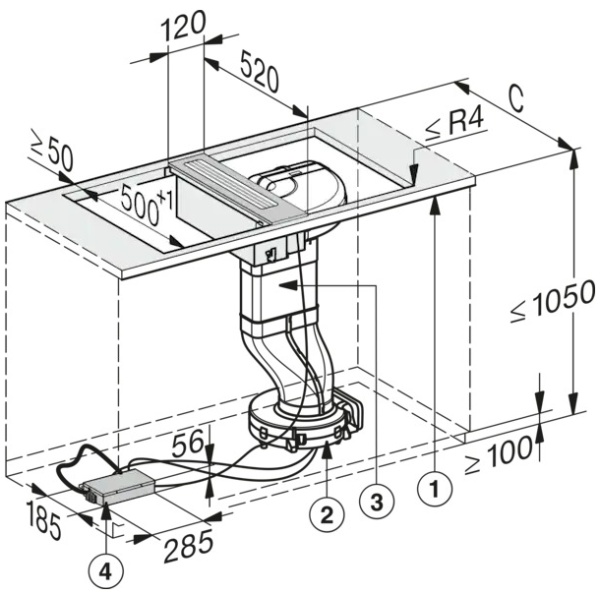

| Weight & dimensions | |
|---|---|
| Width | 120 mm |
| Depth | 520 mm |
| Weight | 11 kg |
| Installation compartment width | 10 cm |
| Installation compartment depth | 50 cm |
| Installation compartment height | 16.8 cm |
| Other features | |
|---|---|
| Warranty | 2 Years Parts & Labour |
| Lighting efficiency class | |
| Number of speeds | 3 |
| Noise level (medium speed) | 43 dB |
| Type | Downdraft |
| Housing material | Ceramic, Glass |
| Grease filter type | Stainless steel |
| Dishwasher proof filter | |
| Height (max) | 16.8 cm |
| Energy efficiency class (old) | A++ |
| Number of filters | 1 pc(s) |
| Illuminance | 0 lx |
| Noise level (low speed) | 39 dB |
| Noise level (high speed) | 65 dB |
| Intensive speed | |
| Pressure (Pa) | 448 |
| Auto power off | |
