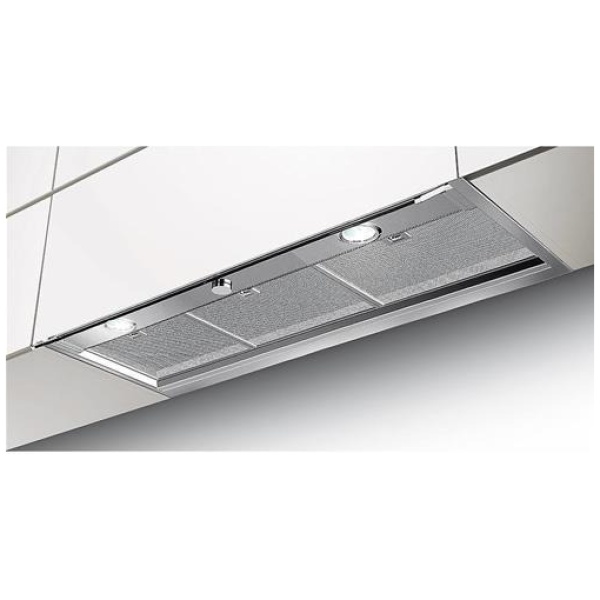

Faber 305.0554.567 IN-NOVA SMART X A120 Built-in Stainless steel 360 m³/h
- Built-in 1200 mm Stainless steel
- 360 m³/h Ducted
- Fluid dynamic efficiency class: D
- Lighting efficiency class: A
- Grease filtering efficiency class: C
- Number of filters: 3 Aluminium
- Number of speeds: 3 68 dB
- 2 bulb(s) LED 1 W
- C 59.1 kWh
SKU : 305.0554.567
Delivery times
If the item is in stock at our warehouse, we will contact you within 24 hours to arrange a delivery date.
If the item is not immediately available, we will contact you within 48 hours via email or phone with an estimated lead time.
Delivery costs
For most orders of £400 and over, delivery is free. For orders under £400, delivery is charged at £30. Please note, a surcharge will apply for some postcodes.
All of our deliveries are manually booked in by phone to ensure a trouble free service.
Full details of our delivery service can be found here.
We will deliver to the ground floor only of your delivery address provided there is unrestricted access to that address. We consider delivery access to be restricted if our delivery drivers are faced with the following:
- Double yellow lines;
- Red routes;
- Narrow lanes;
- Steep hills;
- Low bridges;
- Width restricted roads;
- Property on an upper floor with no lift;
- Basement property via steps; or
- Small lifts.
Specifications
| Overview | |
|---|---|
| Colour | Steel |
| Warranty | 2 Years Parts & Labour |
| Design | |
|---|---|
| Type | Built-in |
| Product colour | Stainless steel |
| Housing material | Stainless steel |
| Built-in display | |
| Performance | |
|---|---|
| Noise level | 68 dB |
| Extraction | |
|---|---|
| Maximum extraction power | 360 m³/h |
| Type of extraction | Ducted |
| Number of speeds | 3 |
| Noise level (medium speed) | 62 dB |
| Grease filter type | Aluminium |
| Removable filter | |
| Motor power | 145 W |
| Height without chimney | 26 cm |
| Number of filters | 3 pc(s) |
| Noise level (low speed) | 57 dB |
| Noise level (high speed) | 68 dB |
| Pressure (Pa) | 290 |
| Lighting | |
|---|---|
| Bulb power | 1 W |
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Power | |
|---|---|
| AC input voltage | 220 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Current | 10 A |
| Energy management | |
|---|---|
| Fluid dynamic efficiency class | D |
| Lighting efficiency class | A |
| Grease filtering efficiency class | C |
| Energy efficiency class | C |
| Annual energy consumption | 59.1 kWh |
| Energy efficiency class (old) | D |
| Grease filtering efficiency (GFE) | 75.1% |
| Fluid dynamic efficiency (FDE) | 13.4 |
| Lighting efficiency (LE) | 82 lux/W |

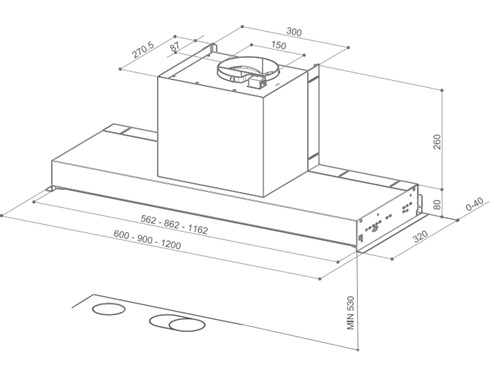

| Weight & dimensions | |
|---|---|
| Width | 1200 mm |
| Depth | 320 mm |
