The TV9 is a monobloc tap in chrome, with single flow and 360° spout rotation. This tap is a stunning square contemporary design, with an easy to use side lever.
Call us : 0115 946 2555
CDA TV9CH kitchen tap Chrome
- Single flow
- WRAS approved
- Monobloc
- 360° spout rotation
- Ceramic disc single lever valve
- Non return valve supplied
- Minimum pressure: 0.5000 Bar
- Maximum operating pressure: 5.5000 Bar
- Recommended maximum water temperature: 46-70 °C
- Number of levers/ handles: 1
- Branded: No
- Supplied in bag: Yes
- Max worktop thickness: 70.0000 mm
- Diameter of cutout required: 35.0000 mm
- Fixing stud to suit worktop size: 120.0000 mm
SKU : TV9CH
5 Years Parts & 2 Years Labour
Delivery times
If the item is in stock at our warehouse, we will contact you within 24 hours to arrange a delivery date.
If the item is not immediately available, we will contact you within 48 hours via email or phone with an estimated lead time.
Delivery costs
For most orders of £400 and over, delivery is free. For orders under £400, delivery is charged at £30. Please note, a surcharge will apply for some postcodes.
All of our deliveries are manually booked in by phone to ensure a trouble free service.
Full details of our delivery service can be found here.
We will deliver to the ground floor only of your delivery address provided there is unrestricted access to that address. We consider delivery access to be restricted if our delivery drivers are faced with the following:
- Double yellow lines;
- Red routes;
- Narrow lanes;
- Steep hills;
- Low bridges;
- Width restricted roads;
- Property on an upper floor with no lift;
- Basement property via steps; or
- Small lifts.
Specifications
| Design | |
|---|---|
| Product colour | Chrome |
| Colour | Chrome |
| Performance | |
|---|---|
| Thermostat | |
| Other features | |
|---|---|
| Warranty | 5 Years Parts & 2 Years Labour |
| Spout type | Standard |
| Water flow control | Lever handles |
| Number of valves/levers | Single |
| Faucet material | Metal |
| Number of mounting holes | 1 |
| Rotating spout | |
| Spout rotation angle | 360° |
| Spout shape | Type L |
| Cartridge type | Ceramic |
| Mounting type | Deck |
| Embedding surface thickness (max) | 7 cm |
| Embedding hole diameter | 5 cm |
| Maximum operating pressure | 5.5 bar |
| Recommended hot water supply temperature | 46 °C |
| Maximum hot water supply temperature | 70 °C |

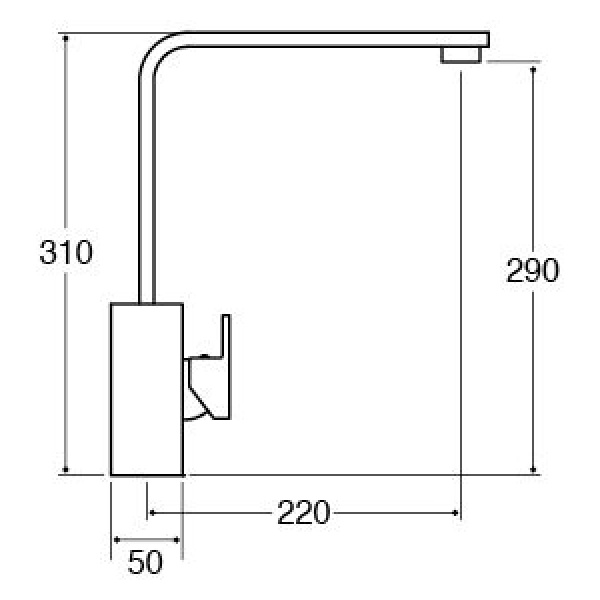

| Height above embedding surface (max) | 31 cm |
| Distance from outlet spout to embedding surface | 29 cm |
