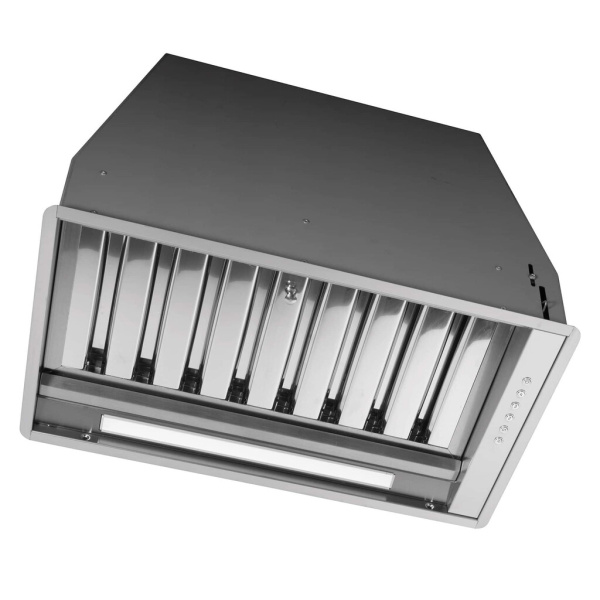

Caple ST524 cooker hood Built-in Stainless steel 600 m³/h
- Electronic push button controls
- 4W LED light [dimmable]
- Adjustable light temperature (from cool to warm) 2700-6500K
- Stainless steel baffle filter
- Required ducting size : 150mm
- Auto timer (switch off after 10mins)
- Motor included
SKU : ST524
Delivery times
If the item is in stock at our warehouse, we will contact you within 24 hours to arrange a delivery date.
If the item is not immediately available, we will contact you within 48 hours via email or phone with an estimated lead time.
Delivery costs
For most orders of £400 and over, delivery is free. For orders under £400, delivery is charged at £30. Please note, a surcharge will apply for some postcodes.
All of our deliveries are manually booked in by phone to ensure a trouble free service.
Full details of our delivery service can be found here.
We will deliver to the ground floor only of your delivery address provided there is unrestricted access to that address. We consider delivery access to be restricted if our delivery drivers are faced with the following:
- Double yellow lines;
- Red routes;
- Narrow lanes;
- Steep hills;
- Low bridges;
- Width restricted roads;
- Property on an upper floor with no lift;
- Basement property via steps; or
- Small lifts.
Specifications
| Overview | |
|---|---|
| Colour | Steel |
| Warranty | 2 Years Parts & Labour |
| Design | |
|---|---|
| Type | Built-in |
| Product colour | Stainless steel |
| Housing material | Stainless steel |
| Control type | Buttons |
| Built-in display | |
| Performance | |
|---|---|
| Noise level | 63 dB |
| Extraction | |
|---|---|
| Maximum extraction power | 600 m³/h |
| Type of extraction | Ducted/Recirculating |
| Number of speeds | 3 |
| Boost position air extraction power | 680 m³/h |
| Exhaust connection diameter | 15 cm |
| Motor included | |
| Grease filter type | Stainless steel |
| Noise level (low speed) | 45 dB |
| Noise level (high speed) | 63 dB |
| Intensive speed | |
| Noise level (intensive speed) | 71 dB |
| Airflow (low speed) | 260 m³/h |
| Pressure (Pa) | 470 |
| Lighting | |
|---|---|
| Bulb power | 4 W |
| Bulb type | LED |
| Colour temperature | 6500 K |
| Illuminance | 191 lx |
| Lighting position | Front |
| Dimmable lighting | |
| Ergonomics | |
|---|---|
| Timer | |
| Power | |
|---|---|
| Power consumption (standby) | 0.49 W |
| Energy management | |
|---|---|
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | A |
| Energy efficiency class | A |
| Annual energy consumption | 44.5 kWh |
| Energy efficiency scale | A+++ to D |
| Energy efficiency index (EEI) | 51 |
| Energy efficiency class (old) | A |
| Grease filtering efficiency (GFE) | 97.1% |
| Fluid dynamic efficiency (FDE) | 30.9 |
| Lighting efficiency (LE) | 50.3 lux/W |

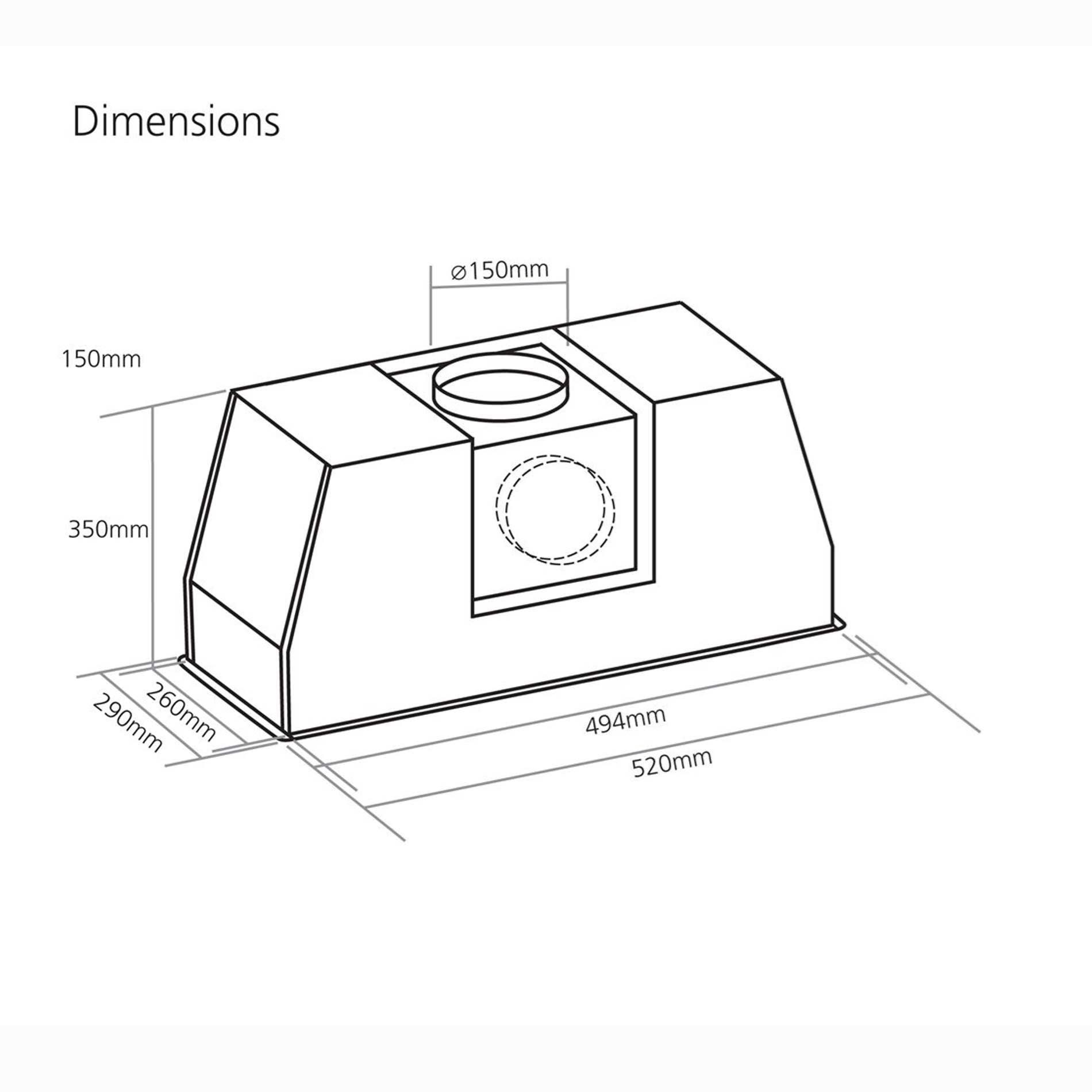

| Weight & dimensions | |
|---|---|
| Width | 520 mm |
| Depth | 290 mm |
| Height (max) | 35 cm |
