Designed for flexible everyday cooking, this 90cm Built-In Double Fan Oven combines a large fan oven, smaller conventional oven and grill. SimplySteamTM uses steam to soften burnt-on food and grease, helping make cleaning easier, while True Fan Cooking circulates heat to support even baking and roasting results.
Call us : 0115 946 2555

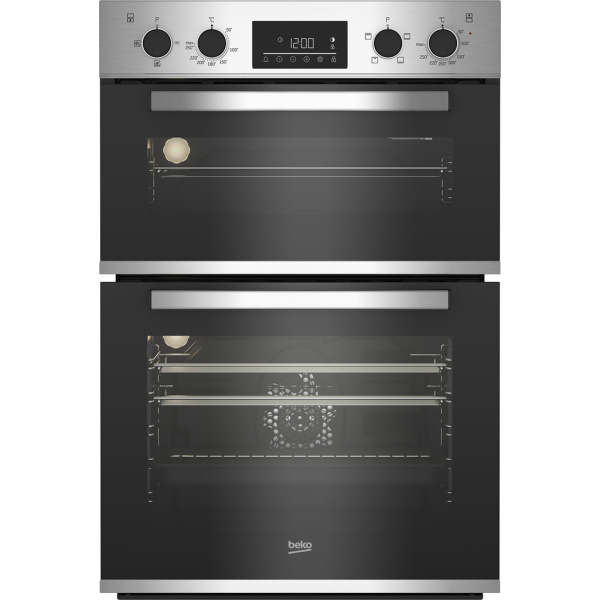

Beko CDFY22309X 90cm Built-In Double Fan Oven with Touch Contol LED Timer
- RecycledNet®
- True Fan Cooking
- Touch Control LED Display
- SimplySteamTM
- Catalytic Liners
- Easy to Remove Side Racks
- Grill
SKU : CDFY22309X
1 in stock
Delivery times
If the item is in stock at our warehouse, we will contact you within 24 hours to arrange a delivery date.
If the item is not immediately available, we will contact you within 48 hours via email or phone with an estimated lead time.
Delivery costs
For most orders of £400 and over, delivery is free. For orders under £400, delivery is charged at £30. Please note, a surcharge will apply for some postcodes.
All of our deliveries are manually booked in by phone to ensure a trouble free service.
Full details of our delivery service can be found here.
We will deliver to the ground floor only of your delivery address provided there is unrestricted access to that address. We consider delivery access to be restricted if our delivery drivers are faced with the following:
- Double yellow lines;
- Red routes;
- Narrow lanes;
- Steep hills;
- Low bridges;
- Width restricted roads;
- Property on an upper floor with no lift;
- Basement property via steps; or
- Small lifts.
Specifications
| Design | |
|---|---|
| Appliance placement | Built-in |
| Product colour | Stainless steel |
| Door hinge | Down |
| Control type | Touch |
| Built-in display | |
| Display type | LED |
| Interior light | |
| Lamp type | Halogen |
| Performance | |
|---|---|
| Wi-Fi controlled | |
| Ergonomics | |
|---|---|
| Timer type | Digital |
| Easy to clean | |
| Self-cleaning | |
| Power | |
|---|---|
| Energy efficiency class | A |
| AC input voltage | 220-240 V |
| Weight & dimensions | |
|---|---|
| Width | 594 mm |
| Depth | 567 mm |
| Height | 890 mm |
| Weight | 47.2 kg |
| Installation compartment width | 5.6 cm |
| Installation compartment depth | 5.5 cm |
| Installation compartment height | 8.8 cm |
| Packaging data | |
|---|---|
| Package width | 660 mm |
| Package depth | 660 mm |
| Package height | 950 mm |
| Package weight | 50.4 kg |
| Expanded Polystyrene (EPS) packaging weight | 910.35 g |
| Metal packaging weight | 12 g |
| Paper packaging weight | 1.06 kg |
| Plastic packaging weight | 148.44 g |
| Wood packaging weight | 816 g |
| Other features | |
|---|---|
| Warranty | 1 Year Parts & Labour |
| Number of ovens | 2 |
| Oven size | Small |
| Oven type | Electric |
| Total oven(s) interior capacity | 113 L |
| Oven net capacity | 75 L |
| Grill | |
| Microwave cooking | |
| Oven defrost function | |
| Number of cooking programs | 3 |
| Integrated clock | |
| Timer modes | Timer |
| Total oven power | 4200 W |
| Full surface grill | |
| Convection cooking | |
| Steam cooking | |
| Top heating + Convection (single mode) | |
| Bottom heating + Convection (single mode) | |
| Convection power | 1800 W |
| Cleaning type | Steam |
| Interior material | Enamel |
| Handle colour | Stainless steel, Black |
| Door material | Glass |
| Oven door opening | Drop down opening |
| Number of glass door panels | 2 |
| Energy consumption (conventional) | 0.82 kWh |
| Energy consumption (forced convection) | 0.82 kWh |
| Energy efficiency class (old) | A |
| Interior dimensions (W x D x H) | 470 x 430 x 350 mm |
| Grill grid included | |
| Telescopic rail included | |
| Products per intermodal container (40ft) | 100 pc(s) |
| Top and bottom heating | |
| Keep warm function | |
| Pizza making function | |
| Slow cooking | |
| Retractable knobs | |
| Compliance certificates | CE |
| Oven cooking method | Static |
| Power connection type | Hard-wired |
| Bread making capability | |
| Cleaning technology | SteamShine |
| Removable door glass | |
| Certification | EN 60335-2-6, CE |
| Bottom heating | |
| Reheat function | |
| Rotisserie | |
| Turnspit included | |
| Number of shelves | 2 shelves |
| Fan heating | |
| Closed door grilling | |
| Tilting grill | |
| Removable catalytic back wall | |
| Removable catalytic side walls | |
| Cooling fan | |
| Oven shelf stoppers | |
| Number of shelf positions | 5 |
| Grill pan and internal rack | |
| Control panel material | Metal |
| Door cooling fan | |
| Carrying handle(s) | |
| Cavity type | Easy to remove side racks |
| Internal coating colour | Black |
| Bulb shape | Circular |
| Glass tray included | |
| Pallets per intermodal container (40ft, HC) | 100 pc(s) |
| Maximum stacked pallets per intermodal container (40ft, HC) | 3 pc(s) |
| Products per intermodal container (40ft, HC) | 100 pc(s) |
| Oven 2 size | Medium |
| Oven 2 net capacity | 38 L |
| Oven 2 power source | Electric |
| Oven 2 grill | |
| Oven 2 conventional cooking | |
| Oven 2 number of shelves | 1 shelves |
| Oven 2 door material | Glass |
| Oven 2 door opening | Drop down opening |
| Oven 2 internal coating | Enamel |
| Oven 2 full surface grill | |
| Oven 2 interior light | |
| Oven 2 number of glass door panels | 2 |
| Oven 2 removable door glass | |
| Oven 2 closed door grilling | |
| Oven 2 energy consumption (conventional) | 0.68 kWh |
| Oven 2 energy efficiency class (old) | A |
| Static cooking | |
| Static cooking+ fan (fan assist) | |
| Top heating power | 2100 W |
| ECO mode | |
| 3D hot air | |
| Oven 2 energy efficiency index (EEI) | 95.8 |
| Bottom heating power | 1100 W |
| Food probe | |
| Minimum fuse protection | 25 A |
| Grill plate | |
| Pizza pan included | |
| Meat probe included | |
| Lava stone included | |
| Harmonized System (HS) code | 85166080 |
| Dialing control | |
| Oven 2 top heating | |
| Oven 2 bottom heating | |
| Oven 2 energy efficiency class | A |
| Microwave + grill cooking | |
| Catalytic liners on side walls | |
| Baking tray handle | |
| Oven 2 cooking method | Static |
| Half grill | |
| Oven 2 grill type | Variable rate grill |
| Oven 2 catalytic liners on side walls | |
| Oven 2 tilting grill | |
| Oven 2 shelf stoppers | |
| Oven 2 catalytic liners on back wall | |
| Oven 2 interior light type | Circular |
| Oven 2 grill pan and internal rack | |
| Oven 2 cavity type | Easy to remove side racks |
| Catalytic back wall | |
| Catalytic side wall | |
| Side racks | |
| Oven 2 side racks | |
| Package tare weight | 2.95 kg |
| Straphor packaging weight | 910.35 g |
| Total packaging weight | 2.95 kg |
| Oven 2 interior dimensions (W x D x H) | 470 x 430 x 170 mm |
| Oven 2 top heating power | 2100 W |
| Oven 2 bottom heating power | 1100 W |
| Oven 2 grill power | 2200 W |
| Oven 2 tray handle | |
