The Bridge Extractor Hob combines induction and extraction
The Bridge feature links two zones for a larger cooking area
4 Individual Zone Controls with separate timers for each
Long-Life Carbon Filter can be cleaned and re-used
Automatic Extractor Control adjusts automatically when cooking
Call us : 0115 946 2555

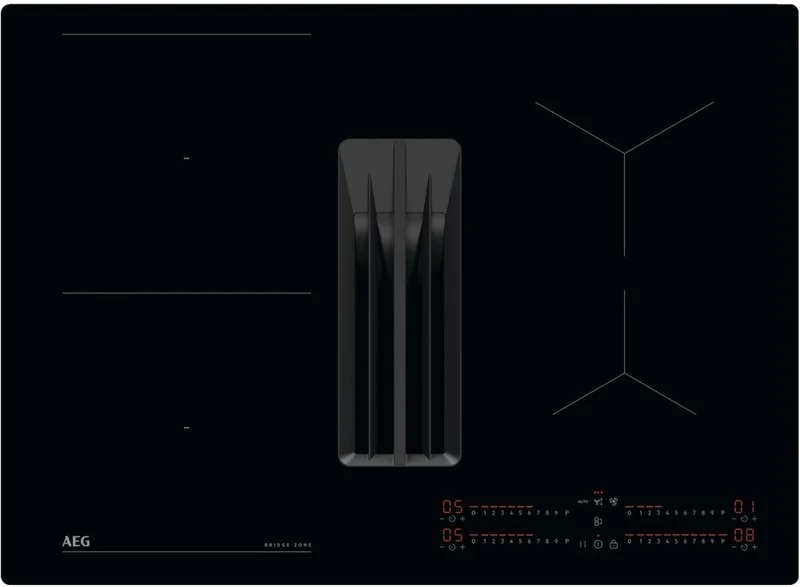

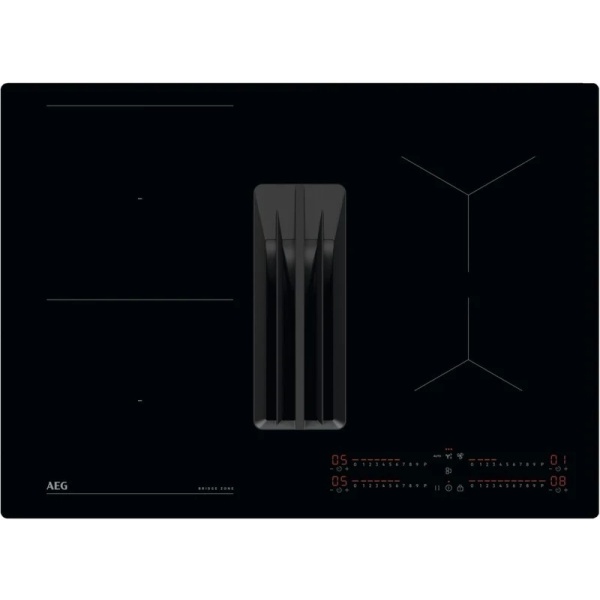

AEG TCH74B01CB 949598097 hob Black Built-in 68 cm Zone induction hob 4 zone(s) Built-in hood
- More freedom in the kitchen - The Bridge Extractor Hob combines an induction hob to fit a 60cm cabinet, with a powerful built-in extractor for optimal air flow. It also has a Bridge function, allowing you to combine two cooking zones into one for larger cookware
- The Bridge feature – cooking versatility with two zones - The convenient Bridge feature links two zones to create a larger cooking area. Both zones are automatically power aligned for seamless cooking performance
- 4 Individual Zone Controls. Unlimited cooking options - 4 Individual Zone Controls, with 9 power levels, allow you to Individually control 4 different cooking areas and set separate timers for each. Other functions include power boost, active touch, child lock and automatic extractor control
- Long-Life Carbon Filter. Clean and re-use multiple times - The Long-Life Carbon Filter is easy to clean, so your kitchen air stays fresh, and your fan runs at its best for longer. Filters can be loaded in the dishwasher for cleaning, easily refitted and regenerated up to 8 times for extended life
- Automatic Extractor Control. Adjusts as you cook - Automatic Extractor Control allows you to focus on what matters – cooking. The hob will automatically switch on and adjust the extraction level according to your cooking activities, keeping your kitchen fresh and hands free
SKU : TCH74B01CB
Delivery times
If the item is in stock at our warehouse, we will contact you within 24 hours to arrange a delivery date.
If the item is not immediately available, we will contact you within 48 hours via email or phone with an estimated lead time.
Delivery costs
For most orders of £400 and over, delivery is free. For orders under £400, delivery is charged at £30. Please note, a surcharge will apply for some postcodes.
All of our deliveries are manually booked in by phone to ensure a trouble free service.
Full details of our delivery service can be found here.
We will deliver to the ground floor only of your delivery address provided there is unrestricted access to that address. We consider delivery access to be restricted if our delivery drivers are faced with the following:
- Double yellow lines;
- Red routes;
- Narrow lanes;
- Steep hills;
- Low bridges;
- Width restricted roads;
- Property on an upper floor with no lift;
- Basement property via steps; or
- Small lifts.
Specifications
| Overview | |
|---|---|
| Colour | Black |
| Warranty | 2 Years Parts & Labour |
| Warranty period | 2 year(s) |
| Design | |
|---|---|
| Product colour | Black |
| Appliance placement | Built-in |
| Control type | Touch |
| Control position | Front right |
| Built-in display | |
| Frame type | Frameless |
| Edge profile | Straight |
| Oven | |
|---|---|
| Grill | |
| Hob | |
|---|---|
| Hob width size | 68 cm |
| Hob type | Zone induction hob |
| Top surface type | Glass |
| Number of cooking zones | 4 zone(s) |
| Number of electric cooking zones | 4 zone(s) |
| Boost function | |
| Bridge function | |
| Cooking zone 1 position | Left rear |
| Cooking zone 1 power source | Electric |
| Cooking zone 1 diameter | 210 mm |
| Cooking zone 1 power | 2300 W |
| Cooking zone 2 position | Left front |
| Cooking zone 2 power source | Electric |
| Cooking zone 2 diameter | 210 mm |
| Cooking zone 2 power | 2300 W |
| Cooking zone 1 boost | 3200 W |
| Cooking zone 2 boost | 3200 W |
| Cooking zone 3 position | Right front |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 diameter | 145 mm |
| Cooking zone 3 power | 1400 W |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Electric |
| Cooking zone 3 boost | 2500 W |
| Cooking zone 4 power | 1800 W |
| Cooking zone 4 diameter | 180 mm |
| Cooking zone 4 boost | 2800 W |
| Extraction | |
|---|---|
| Built-in hood | |
| Type of extraction | Ducted/Recirculating |
| Fan noise level (max) | 66 dB |
| Noise level (intensive speed) | 69 dB |
| Fan noise level (min) | 50 dB |
| Ergonomics | |
|---|---|
| Timer | |
| Child lock | |
| Features | |
|---|---|
| AEG technologies (cooking) | Boost Function, Breeze Function, Built-In Extractor, Child lock |
| Power | |
|---|---|
| Power plug type | No plug |
| Cord length | 1.5 m |
| Energy management | |
|---|---|
| Energy efficiency class (hood) | A+ |
| Fluid dynamic efficiency class | A |
| Grease filtering efficiency class | B |
| Weight & dimensions | |
|---|---|
| Width | 700 mm |
| Depth | 510 mm |
| Height | 230 mm |
| Weight | 17 kg |
| Height above worktop | 5 mm |
| Installation compartment width | 68 cm |
| Installation compartment depth | 49 cm |
| Packaging data | |
|---|---|
| Package width | 760 mm |
| Package depth | 580 mm |
| Package height | 335 mm |
| Package weight | 20.5 kg |
| Cardboard packaging weight | 1.49 kg |
| Polyethylene (PE) packaging weight | 40 g |
| Logistics data | |
|---|---|
| Country of origin | Germany |
| Intrastat code | 85166050 |
