AEG DKB4950M Wall-mounted Stainless steel 603 m³/h
- Wall-mounted 898 mm Stainless steel
- 603 m³/h Ducted/Recirculating
- Fluid dynamic efficiency class: B
- Lighting efficiency class: A
- Grease filtering efficiency class: C
- Number of filters: 2 Aluminium
- Number of speeds: 2 69 dB
- 2 bulb(s) LED 10 W
- B 56.4 kWh
SKU : DKB4950M
Delivery times
If the item is in stock at our warehouse, we will contact you within 24 hours to arrange a delivery date.
If the item is not immediately available, we will contact you within 48 hours via email or phone with an estimated lead time.
Delivery costs
For most orders of £400 and over, delivery is free. For orders under £400, delivery is charged at £30. Please note, a surcharge will apply for some postcodes.
All of our deliveries are manually booked in by phone to ensure a trouble free service.
Full details of our delivery service can be found here.
We will deliver to the ground floor only of your delivery address provided there is unrestricted access to that address. We consider delivery access to be restricted if our delivery drivers are faced with the following:
- Double yellow lines;
- Red routes;
- Narrow lanes;
- Steep hills;
- Low bridges;
- Width restricted roads;
- Property on an upper floor with no lift;
- Basement property via steps; or
- Small lifts.
Specifications
| Design | |
|---|---|
| Product colour | Stainless steel |
| Colour | Steel |
| Control type | Buttons |
| Built-in display | |
| Performance | |
|---|---|
| Noise level | 69 dB |
| Cooker hood | |
|---|---|
| Type of extraction | Ducted/Recirculating |
| Maximum extraction power | 603 m³/h |
| Fluid dynamic efficiency class | B |
| Grease filtering efficiency class | C |
| Power | |
|---|---|
| Energy efficiency class | B |
| Annual energy consumption | 56.4 kWh |
| AC input voltage | 220 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Weight & dimensions | |
|---|---|
| Width | 898 mm |
| Depth | 500 mm |
| Height | 1090 mm |
| Other features | |
|---|---|
| Warranty | 2 Years Parts & Labour |
| Lighting efficiency class | A |
| Number of speeds | 2 |
| Maximum recirculating power | 603 m³/h |
| Type | Wall-mounted |
| Housing material | Aluminium, Stainless steel |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
| Motor included | |

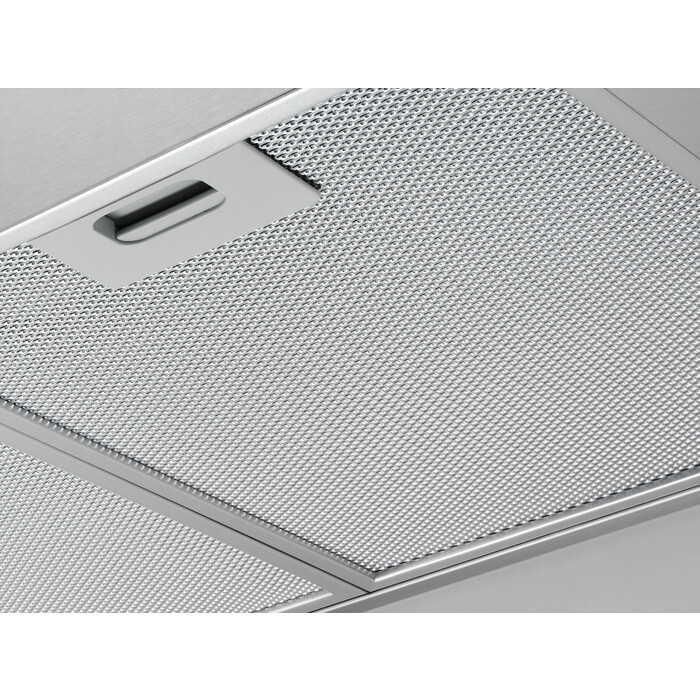

| Grease filter type | Aluminium |
| Removable filter | |
| Washable filter | |
| Bulb power | 10 W |
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Motor power | 250 W |
| Height without chimney | 14 cm |
| Energy efficiency class (old) | B |
| Number of filters | 2 pc(s) |
| Noise level (low speed) | 46 dB |
| Noise level (high speed) | 69 dB |
| Exhaust location | Top |
| Anti-odor filter | |
| Airflow (low speed) | 240 m³/h |
| Grease filtering efficiency (GFE) | 76% |
| Fluid dynamic efficiency (FDE) | 28 |
| Lighting efficiency (LE) | 29 lux/W |
| Power consumption (off) | 0.01 W |
